Specification:
●Input voltage:6S●Max continuous current:30A/45A(5sec)
●Max output power:Approx. 650w/970W(5sec)
●KV value:1800KV
●Dimension:spindle 3.5x29.2x38mm
●Weight:Approx. 87g

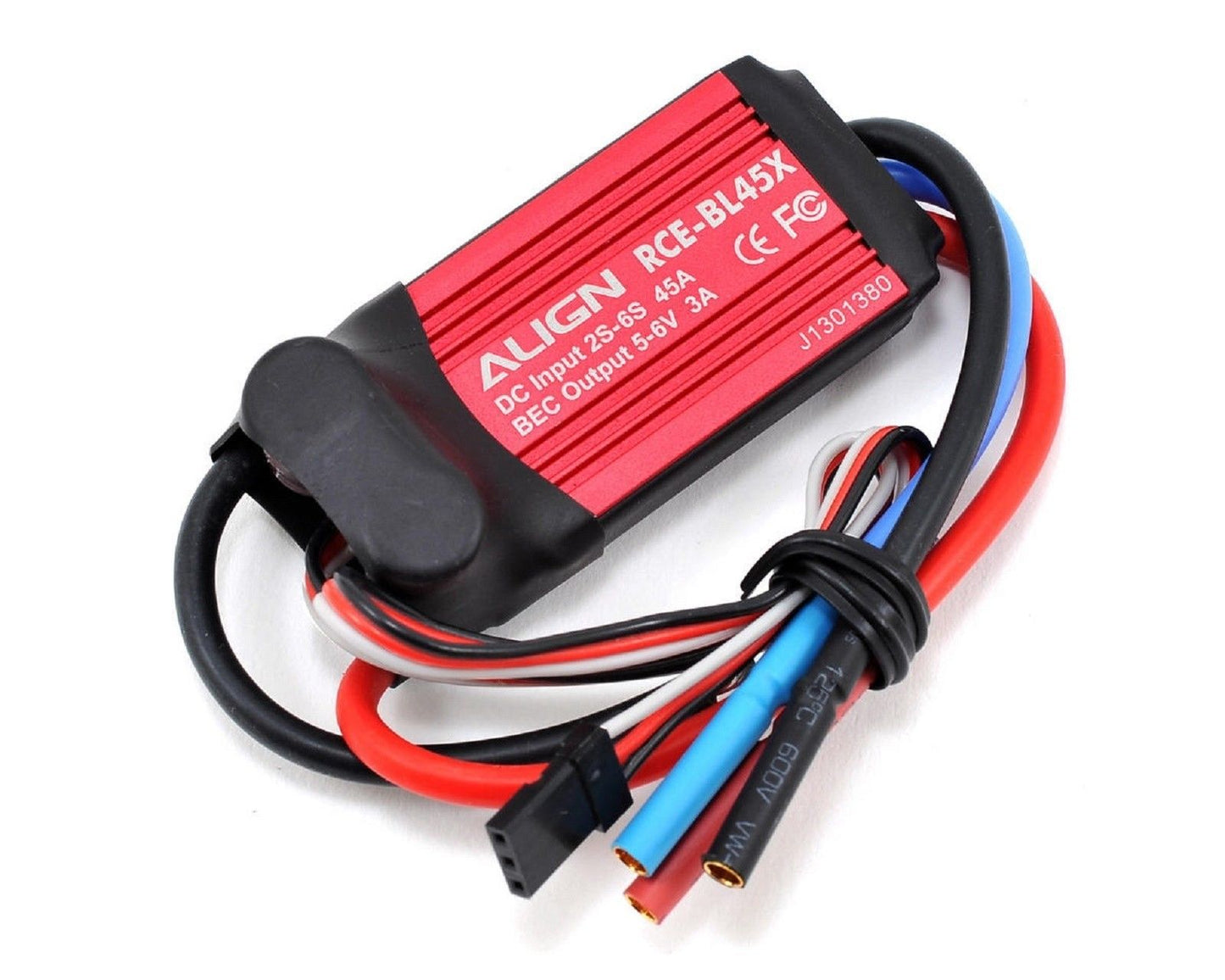

Specification:
●Contimuous current:45Amps
●Surge current:60Amps for 15seconds
●Supporting motor types:2 poles to 10+poles in/outrunner brushless motors
●Supporting maximum RPM:2poles=>190,000rpm
●Supporting maximum RPM:6poles=>63,000rpm
●Supporting input voltage:2S~6S
●Supporting battery types: Li-ion/ Li-poly 2~6 cells
●BEC output: 5~6V,current 3A
●Size:58X29.3X21mm
●Weight:47g
●Surge current:60Amps for 15seconds
●Supporting motor types:2 poles to 10+poles in/outrunner brushless motors
●Supporting maximum RPM:2poles=>190,000rpm
●Supporting maximum RPM:6poles=>63,000rpm
●Supporting input voltage:2S~6S
●Supporting battery types: Li-ion/ Li-poly 2~6 cells
●BEC output: 5~6V,current 3A
●Size:58X29.3X21mm
●Weight:47g
Fearture:
●BEC output voltage(5~6V) to show great performance on the torque & speed of servo.
●BEC output utilizing switching power system,suitable for 2S~6S Li battery,with continuous current rating of 3A,and burst rating of 6A.
●Three programmable throttle speed settings to support quick throttle response.
●Govener Mode(governor speed controller、slow down system).
●Small and compact PCB design for ease of installation.
●Large heatsink for great thermal performance.
●High compatibility to work with 98% brushless motors in the market.
●Ultra smooth motor start design to run with all kinds of brushless motors.
●The power inlet adapts Japanese made "Low ESR" capacitor in order to provide stable power source.
●The power inlet adapts Japanese made "Low ESR" capacitor in order to provide stable power source.
●Users can use the transmitter to operate the motor setting by Super stylized CPU
●BEC output voltage(5~6V) to show great performance on the torque & speed of servo.
●BEC output utilizing switching power system,suitable for 2S~6S Li battery,with continuous current rating of 3A,and burst rating of 6A.
●Three programmable throttle speed settings to support quick throttle response.
●Govener Mode(governor speed controller、slow down system).
●Small and compact PCB design for ease of installation.
●Large heatsink for great thermal performance.
●High compatibility to work with 98% brushless motors in the market.
●Ultra smooth motor start design to run with all kinds of brushless motors.
●The power inlet adapts Japanese made "Low ESR" capacitor in order to provide stable power source.
●The power inlet adapts Japanese made "Low ESR" capacitor in order to provide stable power source.
●Users can use the transmitter to operate the motor setting by Super stylized CPU

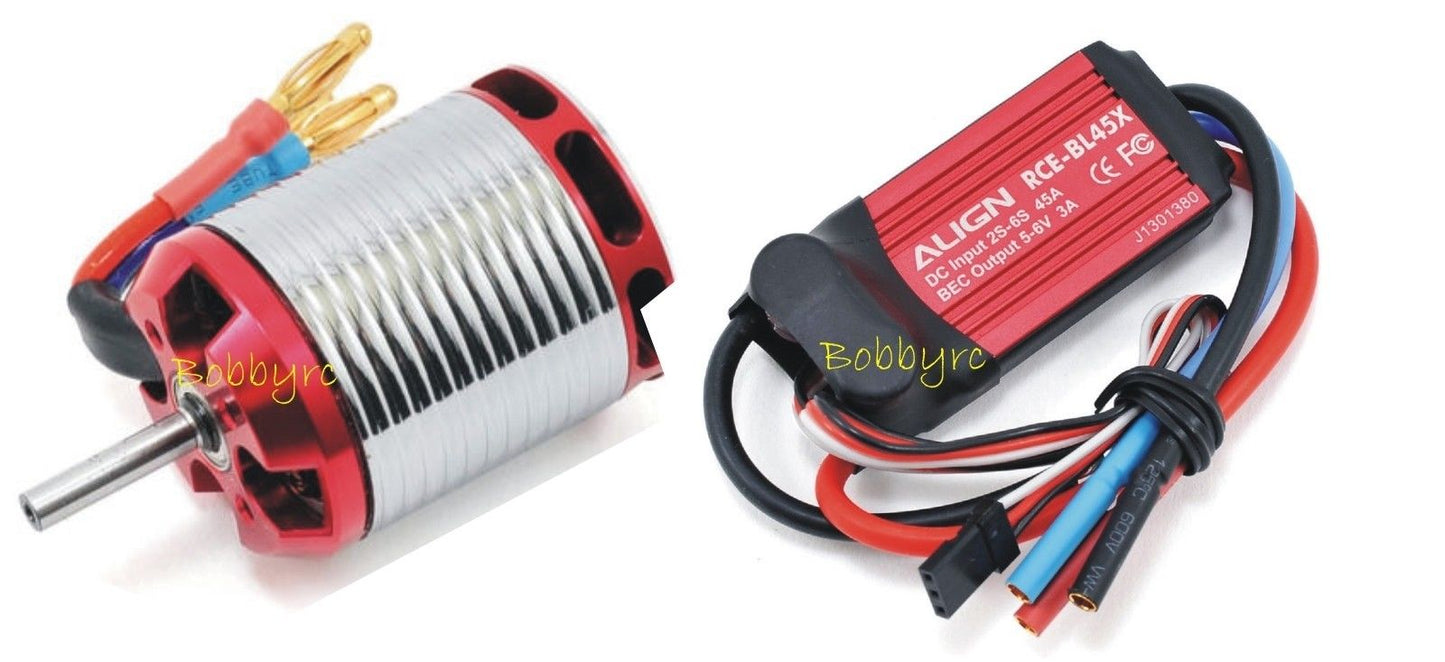

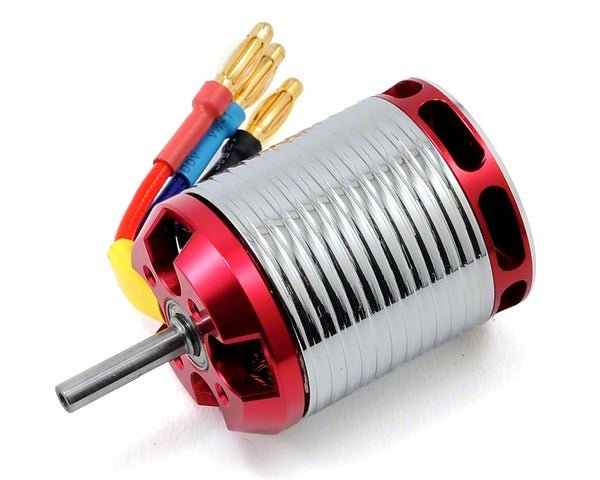

1.Continuation of Align over 25 years motor core technical knowledge and craft, based on 6s voltage, the 460MX (1800KV) motor is tailor made for the T-Rex 450L DOMINATOR, featuring superior efficiency, high power output, extreme torque, and low current, low temperature. As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree.
2.As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree.
3.Even for the none 3D pilots, 460MX 6S motor utilizes less than 5 amps at hover. Not only does this require smaller C-rating packs, the lower temperature extends the battery life at the same time. Charging time basically is cut in half. These advantages makes this an ideal motor for just about everyone.
4.The 460MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
5.The 460MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
6.Maintenance free, high torque, high efficiency, low temperature variant, stable and quiet.
7.Japanese made high-speed ball bearings, powerful magnetic outrunner rotor.
8.Suitable for T-REX 450E series,Must with RCE-BL45X Brushless ESC(Governer Mode) (HES45X01)
2.As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree.
3.Even for the none 3D pilots, 460MX 6S motor utilizes less than 5 amps at hover. Not only does this require smaller C-rating packs, the lower temperature extends the battery life at the same time. Charging time basically is cut in half. These advantages makes this an ideal motor for just about everyone.
4.The 460MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
5.The 460MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
6.Maintenance free, high torque, high efficiency, low temperature variant, stable and quiet.
7.Japanese made high-speed ball bearings, powerful magnetic outrunner rotor.
8.Suitable for T-REX 450E series,Must with RCE-BL45X Brushless ESC(Governer Mode) (HES45X01)
