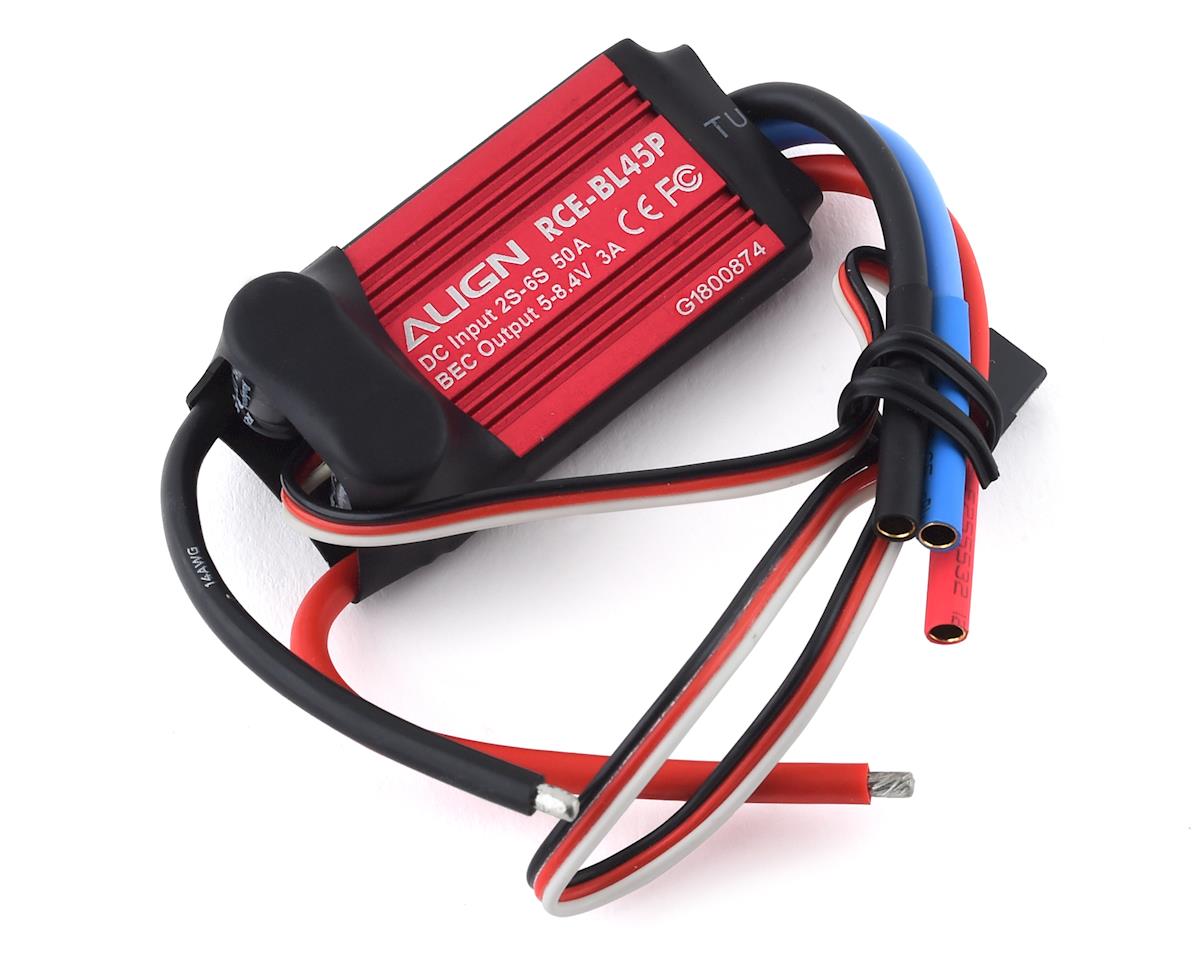

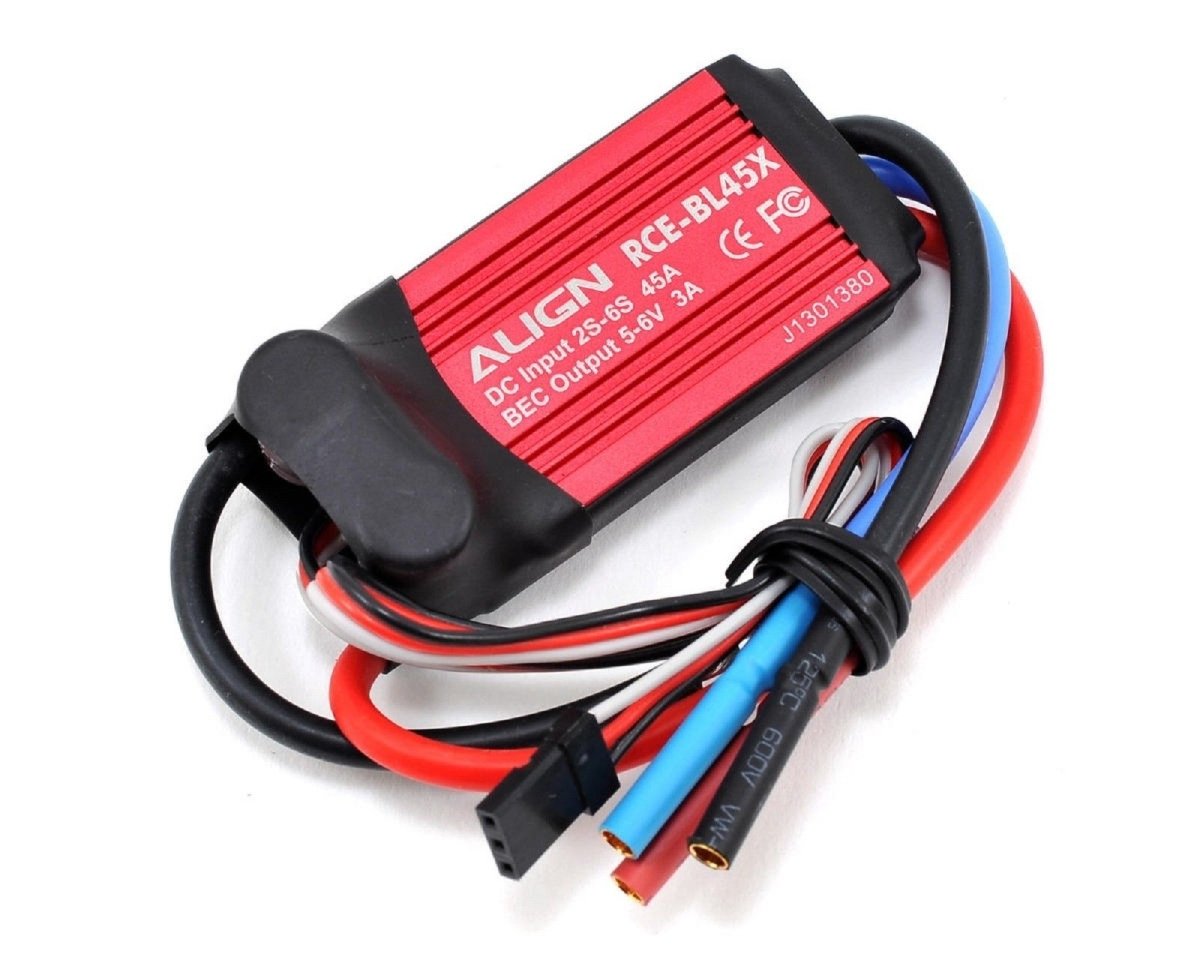

Align 45A Brushless ESC.
Features:
Features:
- BEC output: 5V-8.4V @ 3A (6A Burst)
- Throttle speed adjustment
- Governor mode
- Large heatsink for excellent heat dissipation
- Ultra smooth motor starting
- Japanese Low ESC capacitors
- Lost Aircraft Alarm
Specifications:
Continuous Current: 45A
Burst Current: 60A
Motor Types: 2 pole to 10+ poles inrunn & outrunner
Input Voltage: 7.4V-22.2V (2-6s LiPo)
Battery Type: LiPo & LiIo
BEC: 5-8.4V @ 3A (6A Burst)
Size: 58x29.3x21mm
Weight: 47g
Continuous Current: 45A
Burst Current: 60A
Motor Types: 2 pole to 10+ poles inrunn & outrunner
Input Voltage: 7.4V-22.2V (2-6s LiPo)
Battery Type: LiPo & LiIo
BEC: 5-8.4V @ 3A (6A Burst)
Size: 58x29.3x21mm
Weight: 47g
●If the aircraft should land or crash in an unexpected location and become lost,the pilot can enable the Aircraft Locator Option. The Aircraft Locator Option is engaged by turning off the transmitter. When the ESC does not receive a signal from the transmitter for 30 seconds,it will start to send an alarm to the motor. The sound of the alarm will aid the pilot to locate the aircraft. This option will not work with a PCM receiver that has SAVE function enabled,or with low noise resistant PM receivers.
