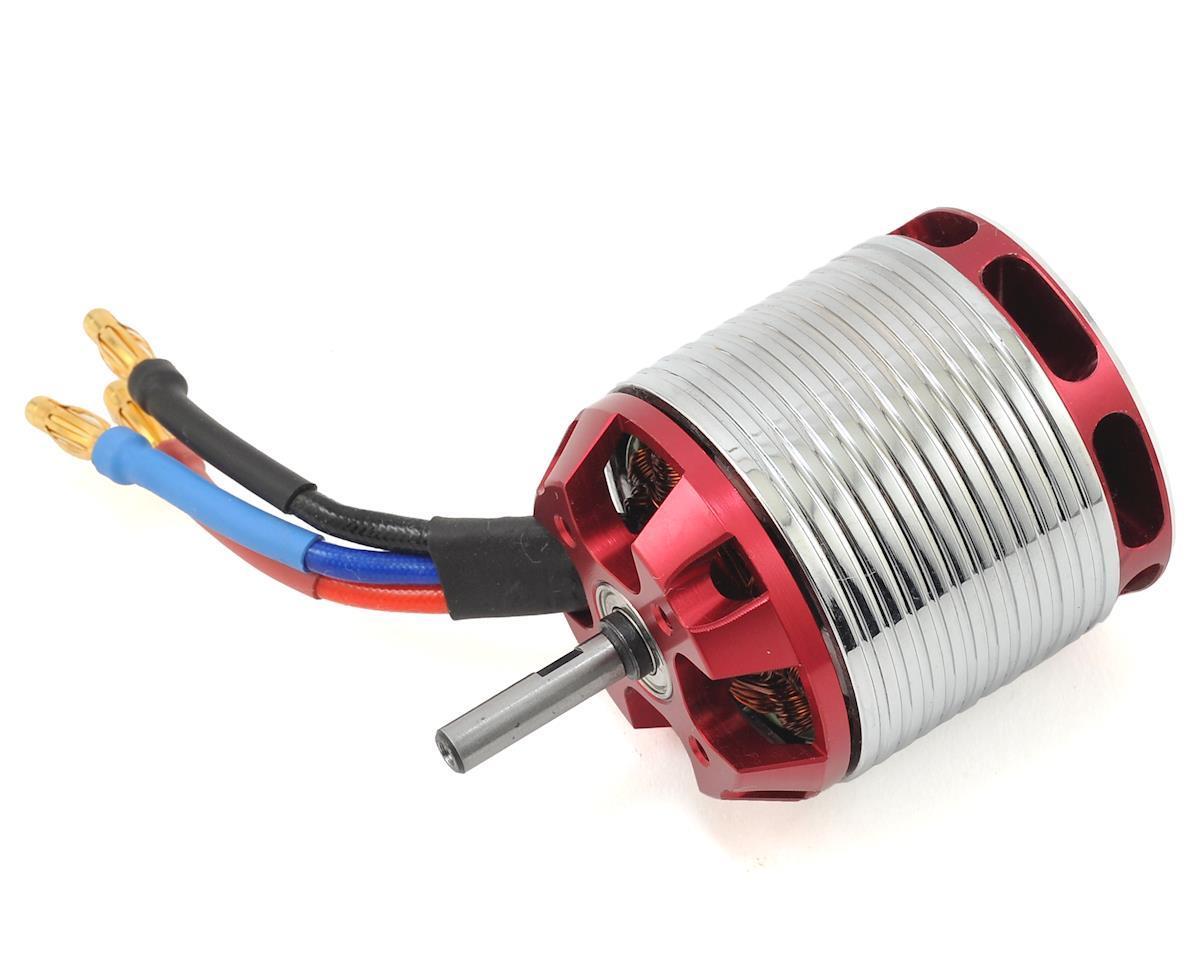

This is an Align 1600kV 520MX brushless Motor, suited for use with the T-Rex 500X helicopter. The 520MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.The 520MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
Specifications:
Specifications:
- Input voltage: DC 18-26V 6s LiPo
- Max continuous current: 185A/130A(5sec)
- Max output power: 1900W/2750W(5sec)
- KV value: 1600KV
- Stator Arms: 9
- Magnet Poles: 6
- Dimension: spindle 5x45x71.7mm
- Weight: 267g (aprox.)
Fearture

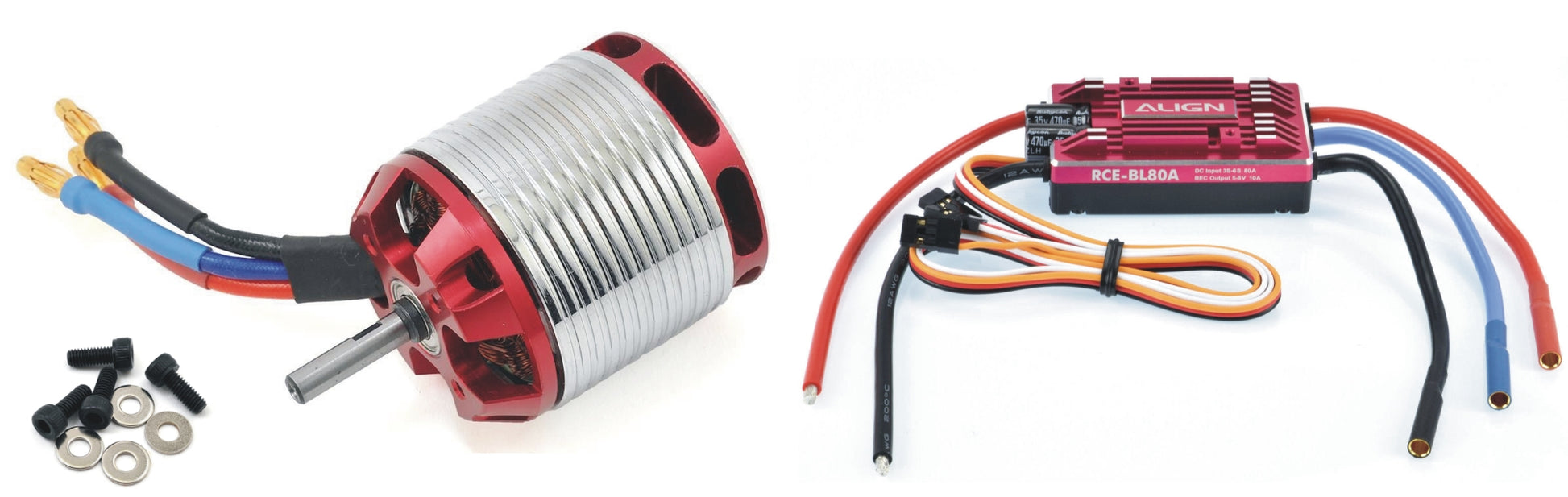

Brand new ESC controller is built-in with BEC voltage setting, allow for continuous current 10A and more, also support surge current support up to 25A, much powerful and precision. Moreover, it utilize with high quality 32 bit M4 ARM processor and superior governor performance, support the best flight performance for all pilots in every level.
1. Superior 32 bits M4 ARM Processor
2. High Quality MOSFET
3. Adjustable Voltage and 10A Large BEC
4. Excellent Governor Function
5. Cool ESC Temperature Keep it Much Reliable
6. Support ASBOX Multifunction Programmer Set Up
Suitable for T-REX 500X/500L/500PRO DFC
Brand new ESC controller is built-in with BEC voltage setting, allow for continuous current 10A and more, also support surge current support up to 25A, much powerful and precision. Moreover, it utilize with high quality 32 bit M4 ARM processor and superior governor performance, support the best flight performance for all pilots in every level.
1. Superior 32 bits M4 ARM Processor
2. High Quality MOSFET
3. Adjustable Voltage and 10A Large BEC
4. Excellent Governor Function
5. Cool ESC Temperature Keep it Much Reliable
6. Support ASBOX Multifunction Programmer Set Up
Suitable for T-REX 500X/500L/500PRO DFC
Specification:
●Continuous current: 80A
●Surge current: 100A
●Supporting input voltage: 3S~6S LiPo / 11.1V~22.2V
●Supporting battery types: Li-Poly 3~6 cells
●BEC output: 5~8V, Continuous 10A / Surge 25A
●Size: 70x38.2x20.4mm
●Weight: Approx. 97g
●Surge current: 100A
●Supporting input voltage: 3S~6S LiPo / 11.1V~22.2V
●Supporting battery types: Li-Poly 3~6 cells
●BEC output: 5~8V, Continuous 10A / Surge 25A
●Size: 70x38.2x20.4mm
●Weight: Approx. 97g
