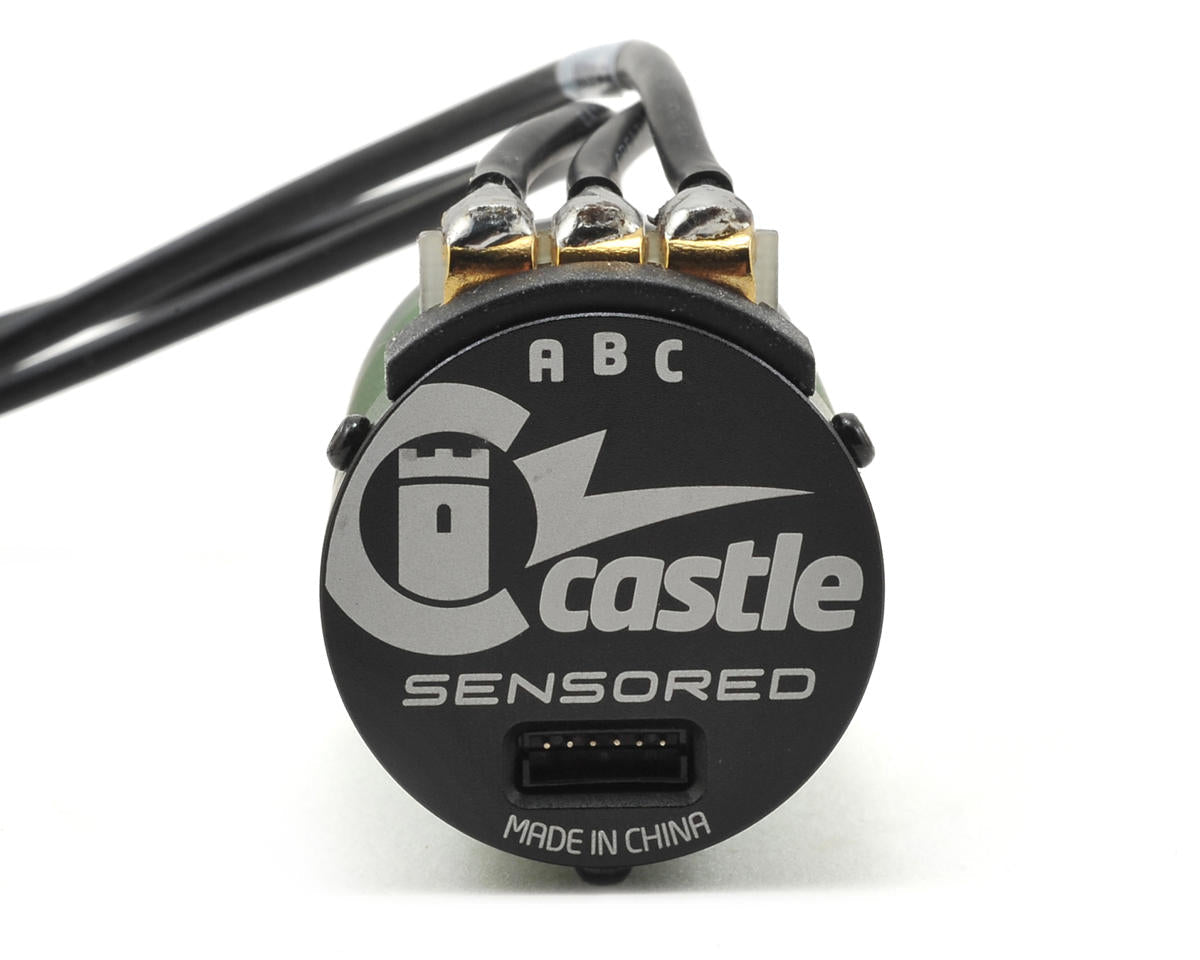

Castle Creations 1515 V2 Sensored 4-Pole Brushless Motor (2200kV)
In Stock Online
Estimated ship date:
24hrs
Couldn't load pickup availability
- Description
- Shipping and Refund
- Reviews
Castle Creations 1515 V2 Sensored 4-Pole Brushless Motors combine rotor position sensor technology with improved high-power and high-efficiency motor design to deliver ultra smooth startup, precise low-speed control, predictable power delivery, incredible torque, and lightning-fast response. Through the use of Castle's Smart Sense technology, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup and allows the 1515 to deliver precise throttle control and buttery smooth starts with the raw power and longer run times that Castle motors are known for.
EFFICIENCY IS KEY
The higher the efficiency of a motor, the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.
RELIABILITY CAN’T BE IGNORED
Without a robust and reliable design, efficiency will only go so far. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Proprietary winding techniques allow Castle to produce a stator assembly that is the lowest possible resistance, resulting in a cooler-running motor. A cooler motor has a longer lifetime. Construction required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability.
INTEGRATED SOPHISTICATION
Castle engineers always add a little something extra in their designs that takes your performance to the next level. When paired with a Castle Creations sensor-supported ESC, like the MAMBA MONSTER X, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors. With a Castle sensored ESC and sensored motor, you will have the ULTIMATE POWER PLANT for your vehicle.
SMARTSENSE™
SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ultra-efficient Sensorless mode. When running, a motor must transition between different load points, and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled Hybrid between smooth sensored startups and high-efficiency Sensorless drive.
Features:
- Redesigned stator and rotor assemblies to improve magnetic flux.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
- High-Strength Kevlar wrap and 180C grade neodymium sintered magnets
- Oversized NMB bearings and high-temperature, high-purity copper windings
- High performance 0.2mm steel lamination stacked stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with high-quality temperature-stabilized sensors
- T6 aluminum CNC-Machined front/rear end bell
- Proudly designed and supported in Kansas, USA.
Specifications:
- Application: Ideal for 1:8 scale buggies, truggies, on-road vehicles, and 1:10 scale monster trucks up to 15lbs.
- Input Voltage Range: 2-6S LiPo
- Kv Rating: 2200Kv
- Max. RPM: 60.000
- Diameter: 40mm (41.4mm with fins)
- Length: 3.99" (101.2mm)
- Shaft Size: 20mm(Length), 5mm(Diameter)
- Weight(w/wires): Approx. (429g) 15.1oz (380g) without wires.
- Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm

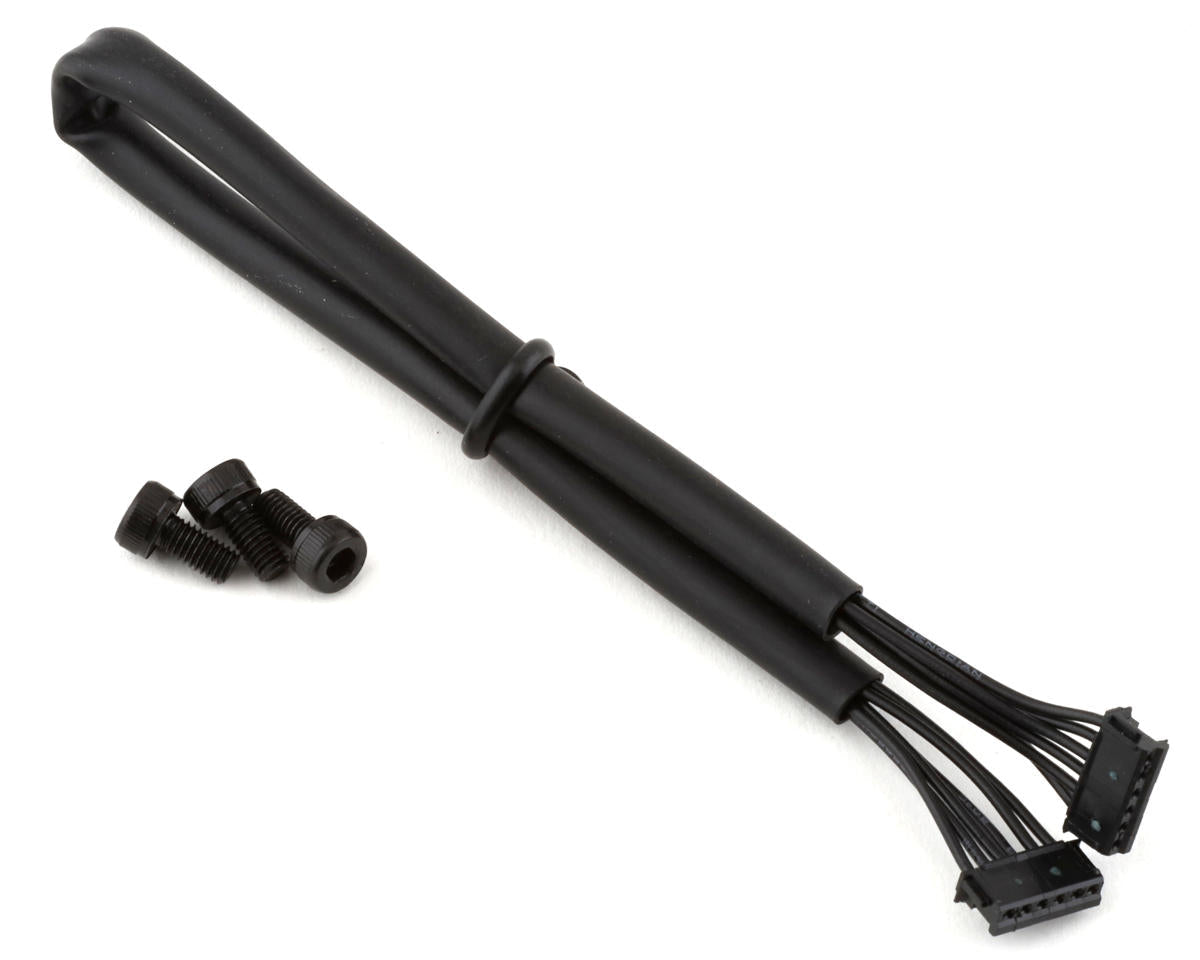

- Connectors: 6.5mm male Castle Bullet Connectors, include 210mm length sensor wire.
Includes:
- (1) 1515-2200Kv V2 Brushless Sensored Motor
