• Align T-Rex Parts

HSD45001

Align/T-Rex Helicopters 470 450 Series Cyclic DS450M HV Digital Servos

Regular price $43.95

Shipping calculated at checkout.

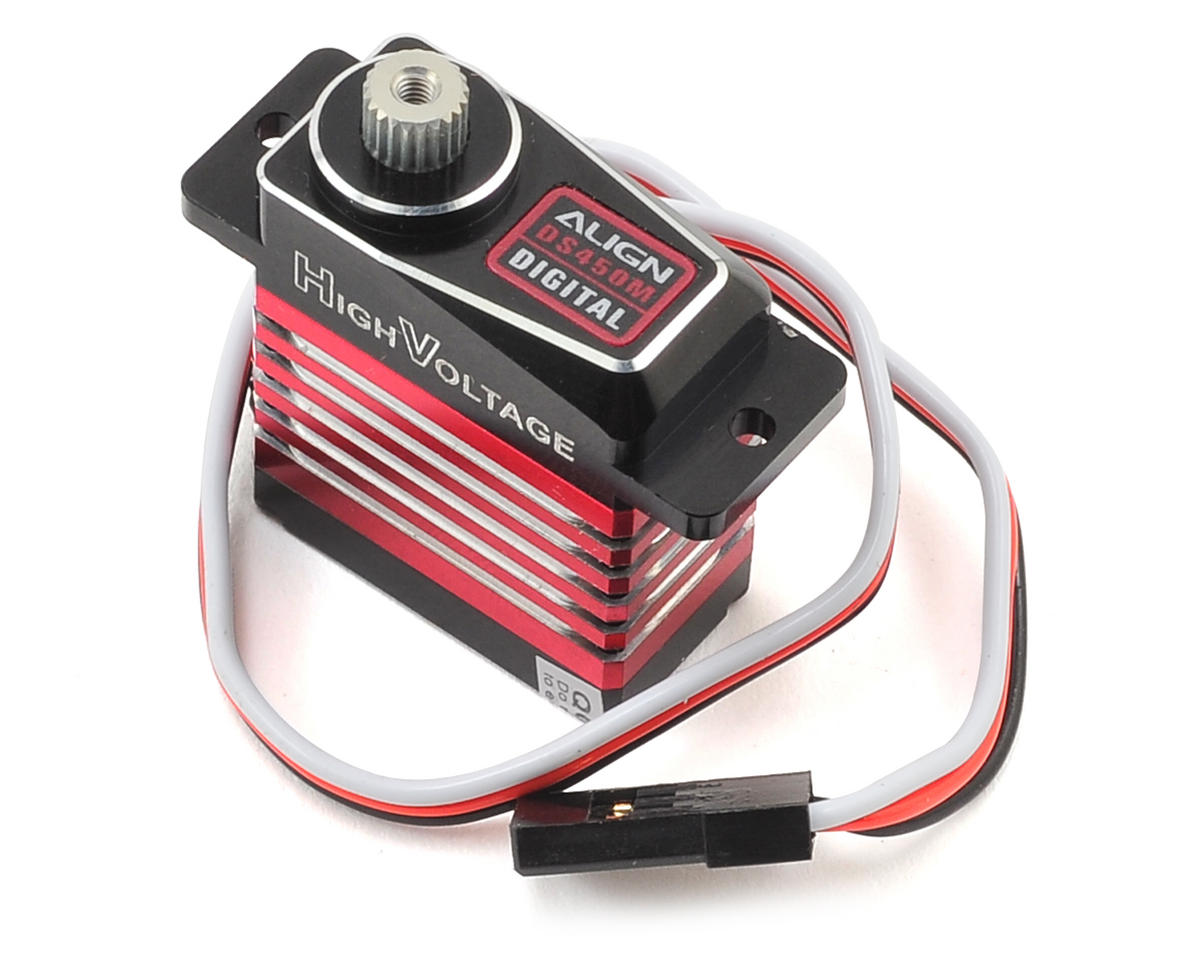

This is the Align DS450M Metal Gear Digital High Voltage Servo, suitable for cyclic use with the Align T-REX 250 and 450 helicopters. The DS450M features the same speed and torque specifications as the DS450. The main difference between the two servos is that this DS450M features a full CNC alloy case, and the DS450 only features a center aluminum case, with plastic upper and lower pieces. Because of this, the DS450 is slightly lighter.

Features:

  • Faster speed with high torque performance, allowing helicopter to perform with faster and higher precision.
  • High rigidity, shock resistant metal gears with high strength composite alloy gears with durable structure characteristics.
  • Aluminum alloy case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
  • Supports digital & analog control signal.
  • Powerful and precise servo, suitable for T-Rex 250/450 CCPM cyclic use.
  • Supports 8.4V high voltage input to provide optimal speed and torque performance of the servo.

Specifications:
Stall torque: 3.0kg.cm @ 6.0V; 4.0kg.cm @8.4V
Motion speed: 0.06sec/60° @ 6.0V; 0.05sec/60° @ 8.4V
Rating voltage: DC 6.0-8.4V
Temperature range: -20°C ~ +60°C
Dimensions: 23 x 12 x 31.3mm
Weight: 20g

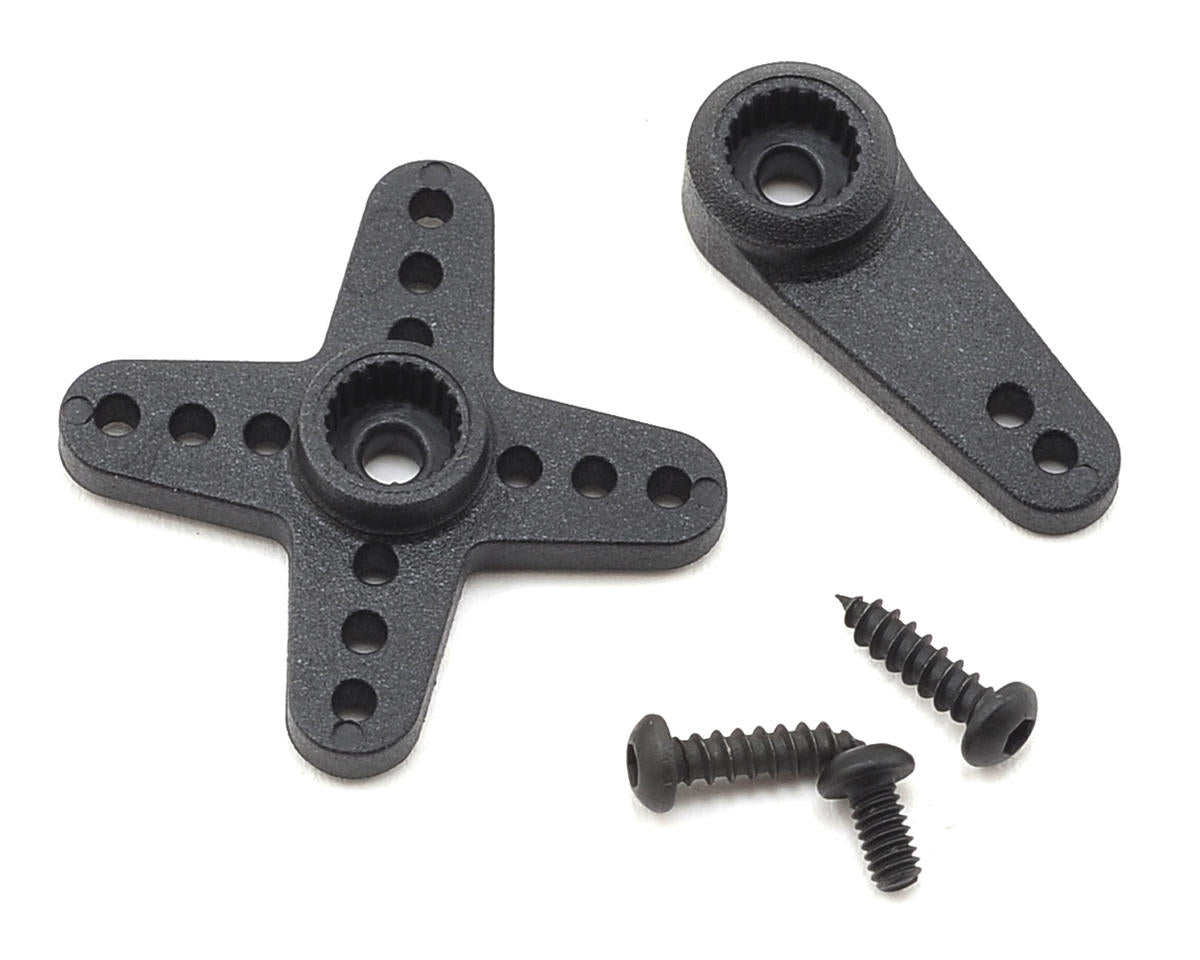

Includes:

  • (1) DS450M Digital Servo
  • (2) Socket Button Head Self Tapping Screw
  • (1) Socket Screw
  • (2) Servo Arm
