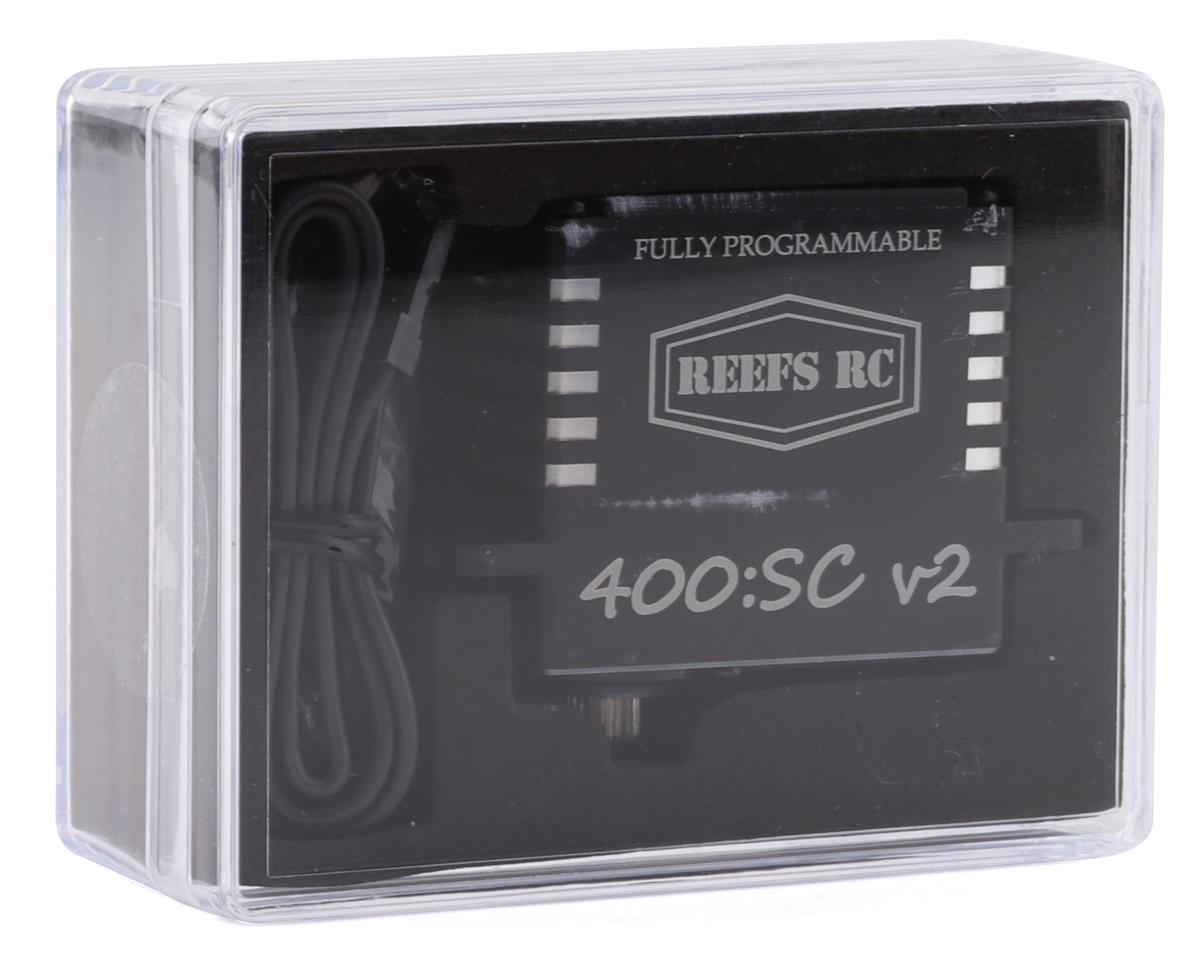

Reefs RC 400:SC V2 High Speed Steel Gear Digital Servo (High Voltage)

Sale price $129.99 Regular price $139.99

Shipping calculated at checkout.

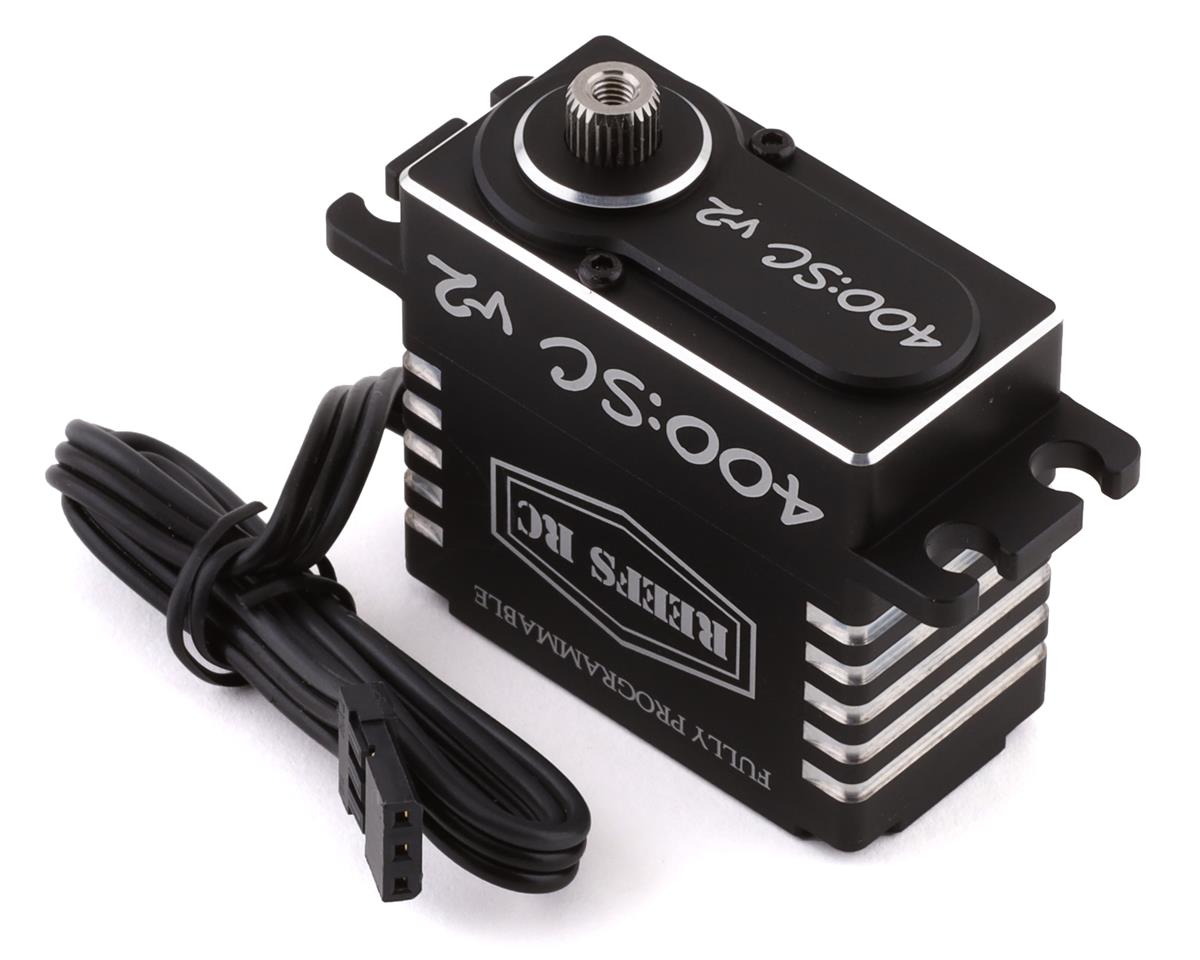

Reefs RC 400:SC V2 High Speed Steel Gear Digital Servo. This Reefs servo features an all aluminum case and steel gears. Package includes one servo, two plastic servo horns and mounting hardware.

NOTE: BEC not required, but is recommended.

  • Water Resistant
  • Magnetic Angle Sensor
  • Pulse Width Modulation (PWM) Control
  • Fully Programmable with Reefs Software

Specifications:

  • Voltage: 4.8-8.4V
  • Case: Full CNC Aluminum
  • Bearing Type: 3 Ball Bearing
  • Weight: 2.85oz
  • Dimension: 1.57x0.78x1.5" (LWH)
  • Torque:
    • 6.0V: 344oz-in
    • 7.4V: 400oz-in
    • 8.4V: 427oz-in
  • Speed:
    • 6.0V: 0.088 sec/60°
    • 7.4V: 0.074 sec/60°
    • 8.4V: 0.070 sec/60°
  • Spline: 25T
  • Dead Band Width: 2¦Ìs
