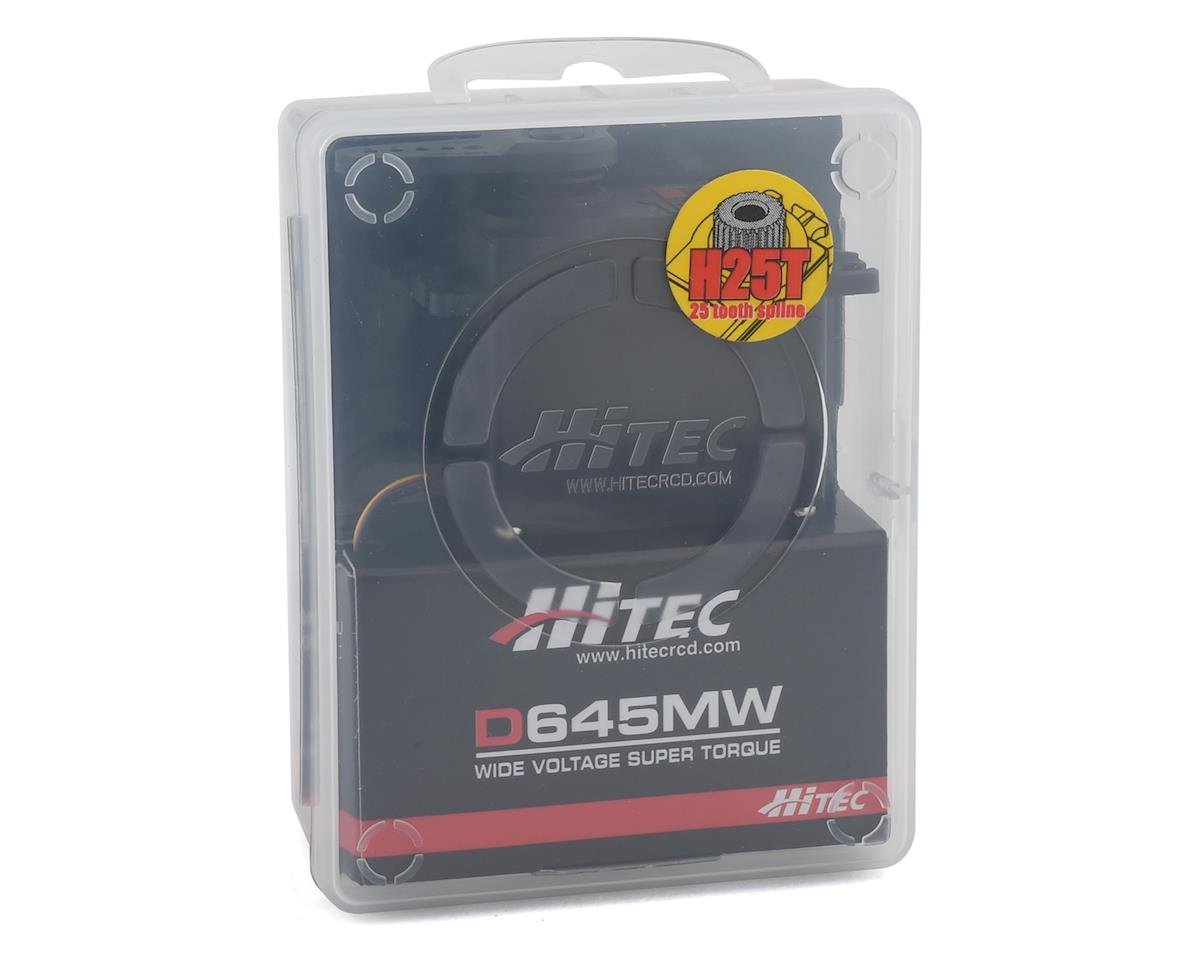

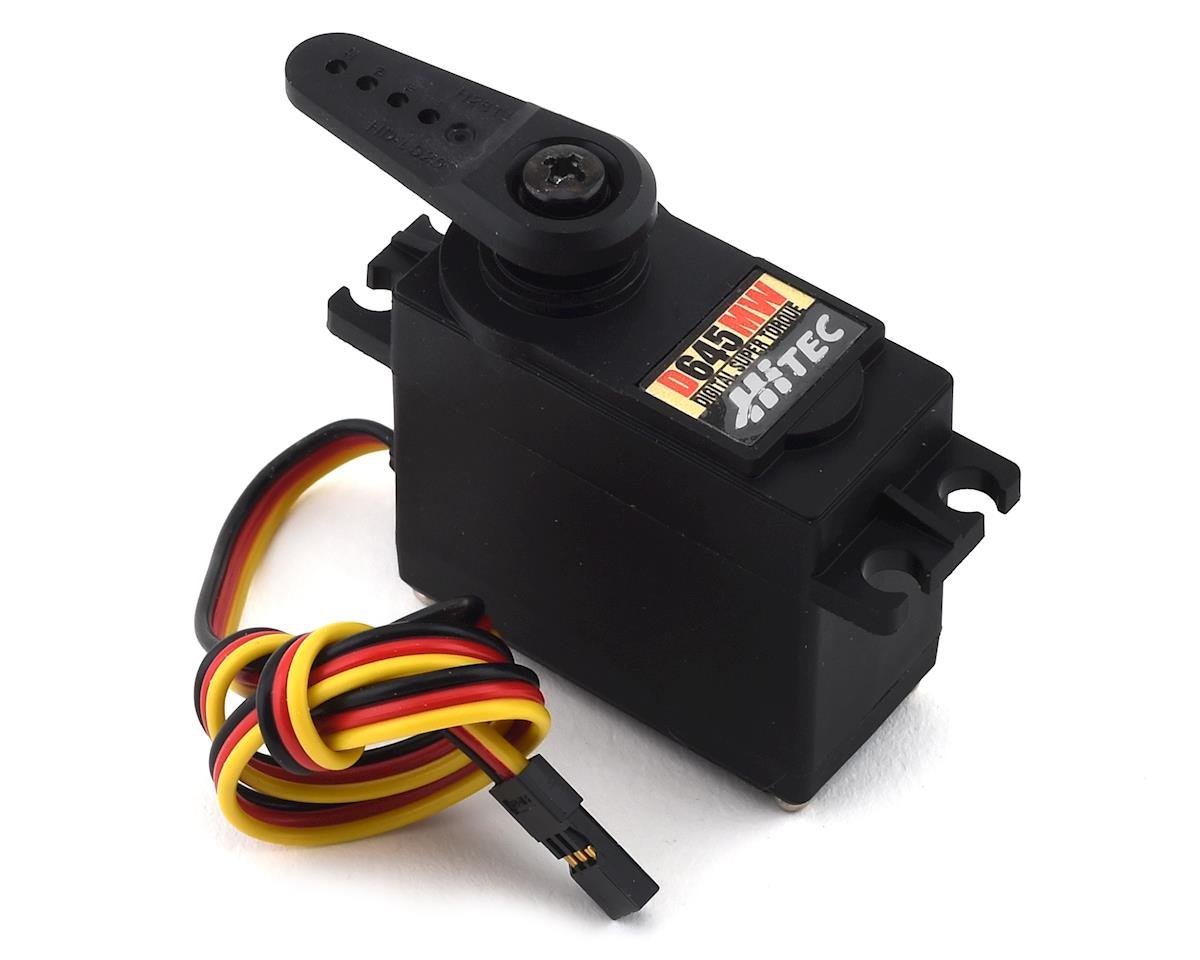

Hitec D645MW High Torque Metal Gear Servo (High Voltage) [HRC36645]

Regular price $43.99

Shipping calculated at checkout.
This is the Hitec High Votage D645MW High Torque Metal Gear Servo. The metal D-645MW is part of Hitec's D-Series servo line. All Hitec D-Series servos have been designed using Hitec's redesigned, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Highlights of the D-Series Servos Manufactured by Hitec RCD
Features:
  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 25-Tooth Output Spline
Programmable Functions:
  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset
Specifications:
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°): 0.28 ~ 0.20 ~ 0.17
Maximum Torque Range oz./in.: 115 ~ 158 ~ 180
Maximum Torque Range kg./cm.: 8.3 ~ 11.3 ~ 12.9
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 500 mA
Stall Current Draw: 2,650 mA
Dead Band Width: 2 µs
Dimensions (Inches): 1.59 x 0.77 x 1.48
Dimensions (Metric): 40.6 x 19.8 x 37.8
Weight (Ounces): 2.11
Weight (Gram): 57.0
Circuit Type: 32bit Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): H25T
Case Material: Plastic
Dust/Water Resistance: N/A
Connector Gauge (AWG)/Strand Count: 22/60

Accessories:
  • Metal Gears Set
  • Metal Plastic 1st Gear Set
  • Plastic Case Set

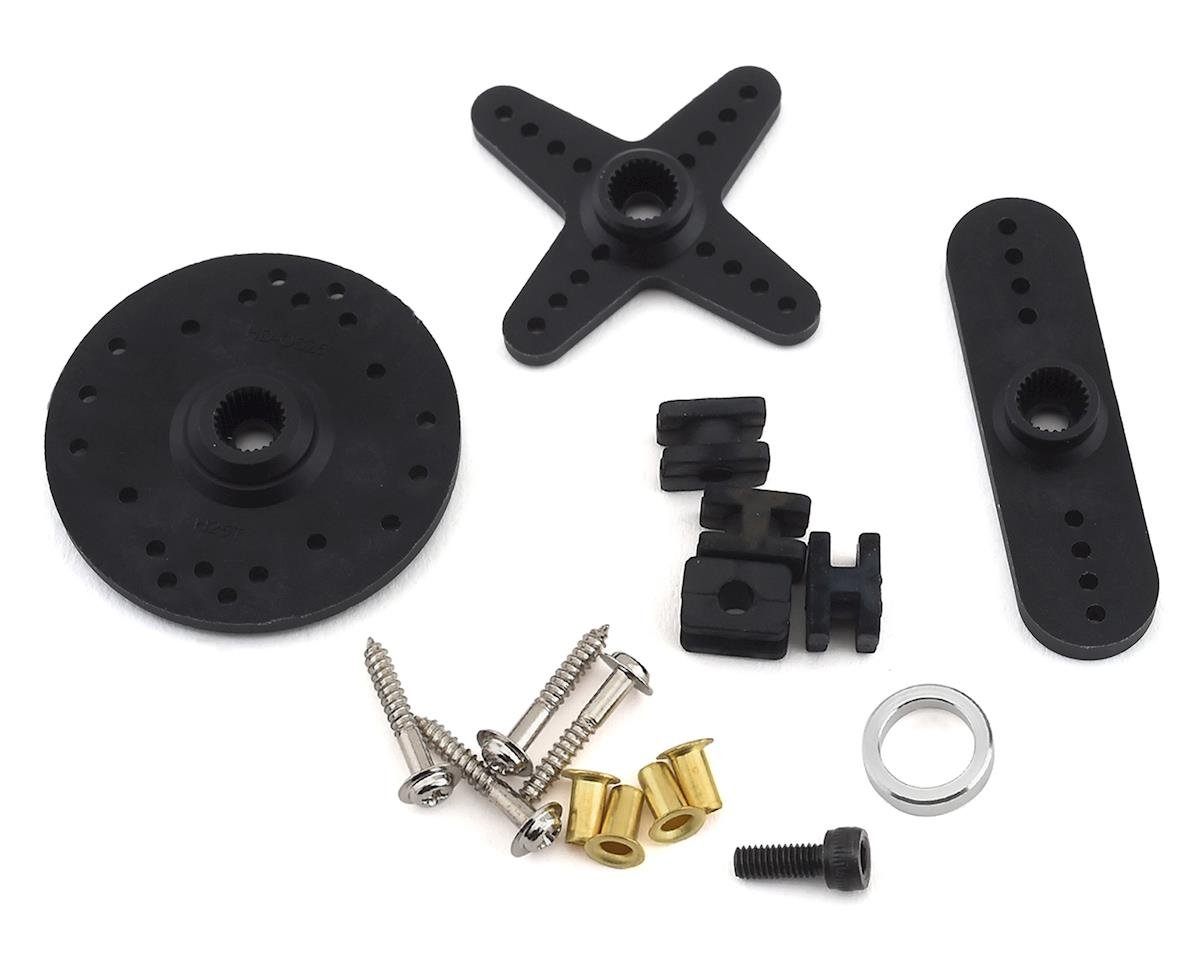

  • Applicable Horns
