Specification

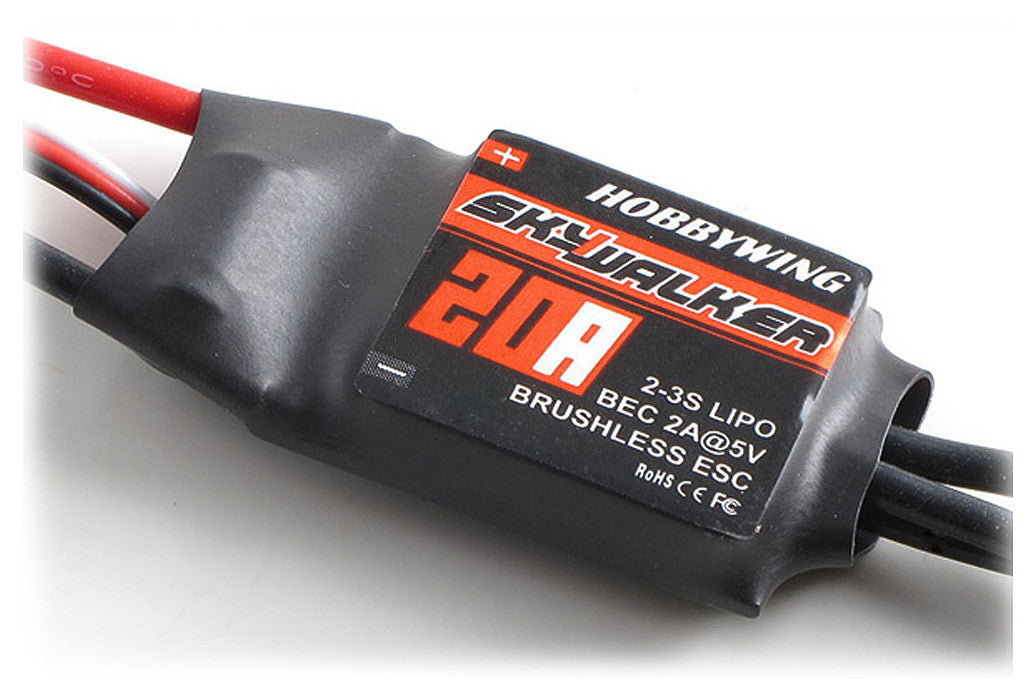

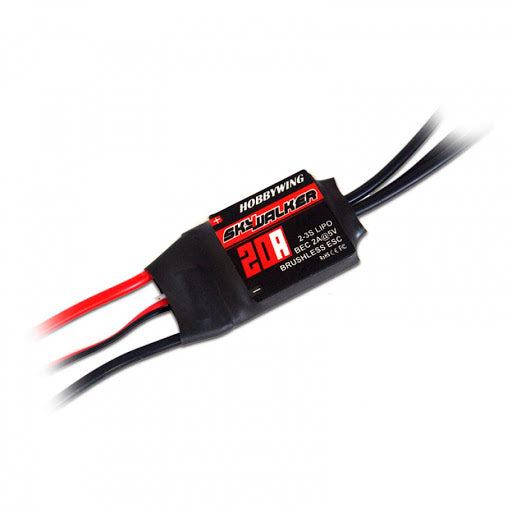

Skywalker 20ACont.Current 20A
Burst Current (>10s) 25A
BEC.Mode Linear
BEC Output 5V/2A
BEC Output Capability 2S Lipo 5 Servos
3S Lipo 4 Servos
Battery Cell Lipo 2-3S
NiMH 5-9 Cells
Weight 19g
2 Features
1 Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2 Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
3 User programmable.
4 Multiple program methods supported: transmitter stick, Very easy to program the ESC at home or at the flying field.
5 Compatible with Lipo and NiMH battery.
6 Timing can be changed to be suitable for different brushless motors.
7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
