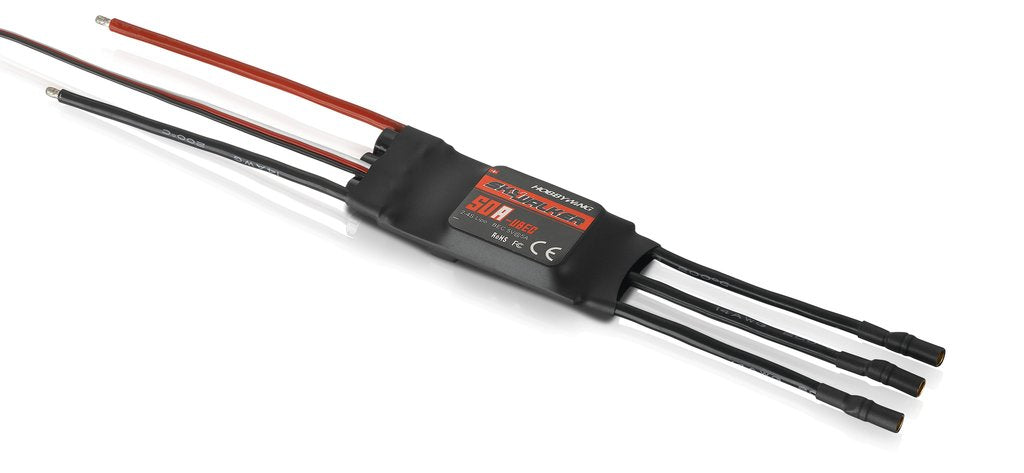

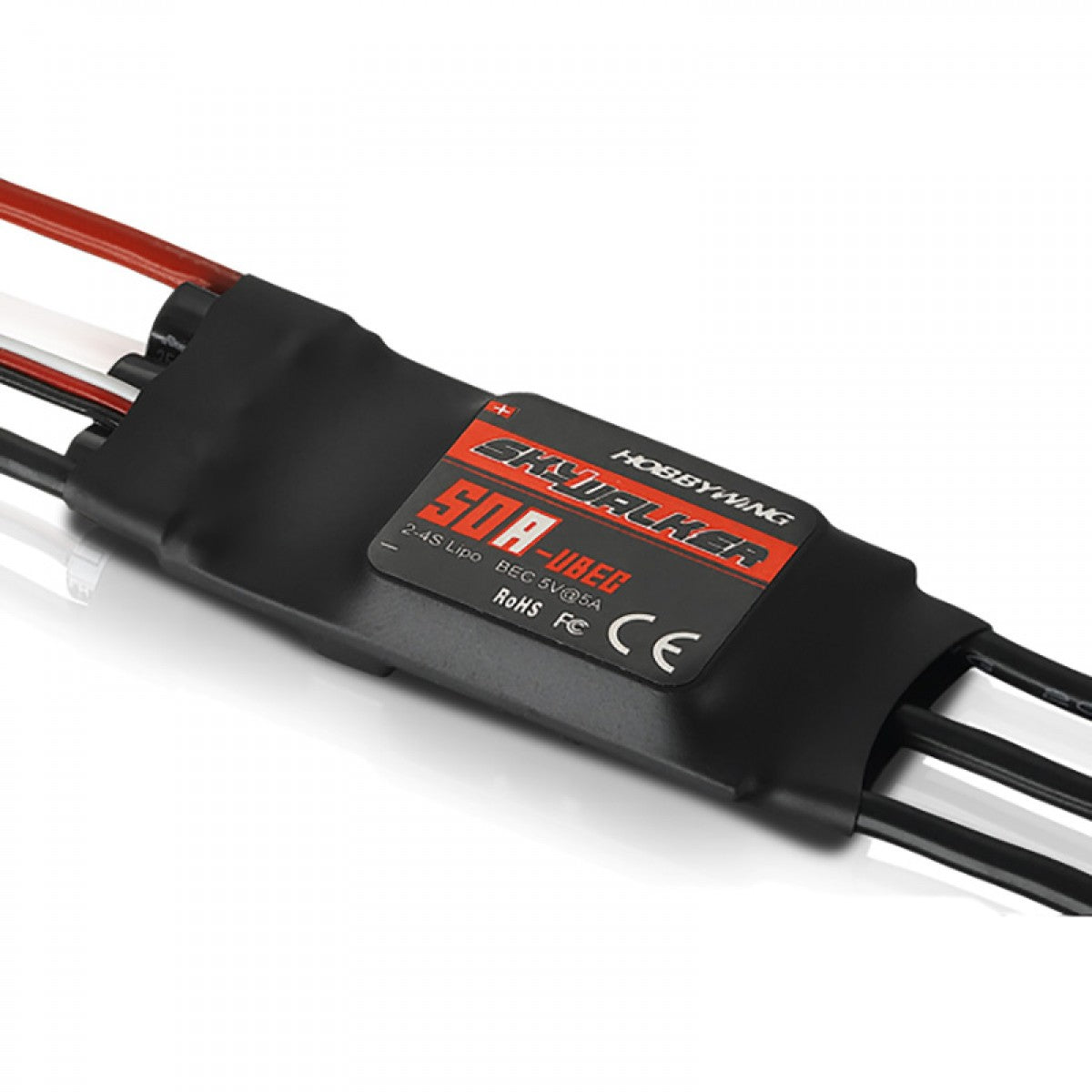

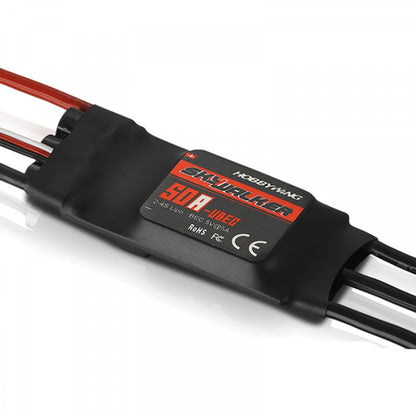

Hobbywing SkyWalker 50A (UBEC) Brushless Speed Controller ESC Helicopter/Plane

Regular price $18.99

Shipping calculated at checkout.
Specification
1 Output: Continuous 50A, Burst 65A up to 10 seconds.
2 Input Voltage: 2-4S Lipo, 5-12 cells NiMH.
3 BEC: 5A / 5V Switch mode BEC.
4 Refresh rate of the throttle signal: 50Hz to 432Hz.
5. Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
6 Size: 65mm*35mm*14mm.
7 Weight: 41g.
Features
1 Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2 Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
3 User programmable.
4 Multiple program methods supported: transmitter stick,  Very easy to program the ESC at home or at the flying field.
5 Compatible with Lipo  and NiMH bat
6  Timing can be changed to be suitable for different brushless motors.
7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
