Reefs RC RAW400LP High Torque Waterproof Digital Servo (High Voltage)

Name: Reefs RC RAW400LP High Torque Waterproof Digital Servo (High Voltage)
Brand: Reefs RC
SKU: REEFS136
Price: 139.99 USD
Availability: InStock

$139.99 USD

Sale Sold out

Shipping calculated at checkout.

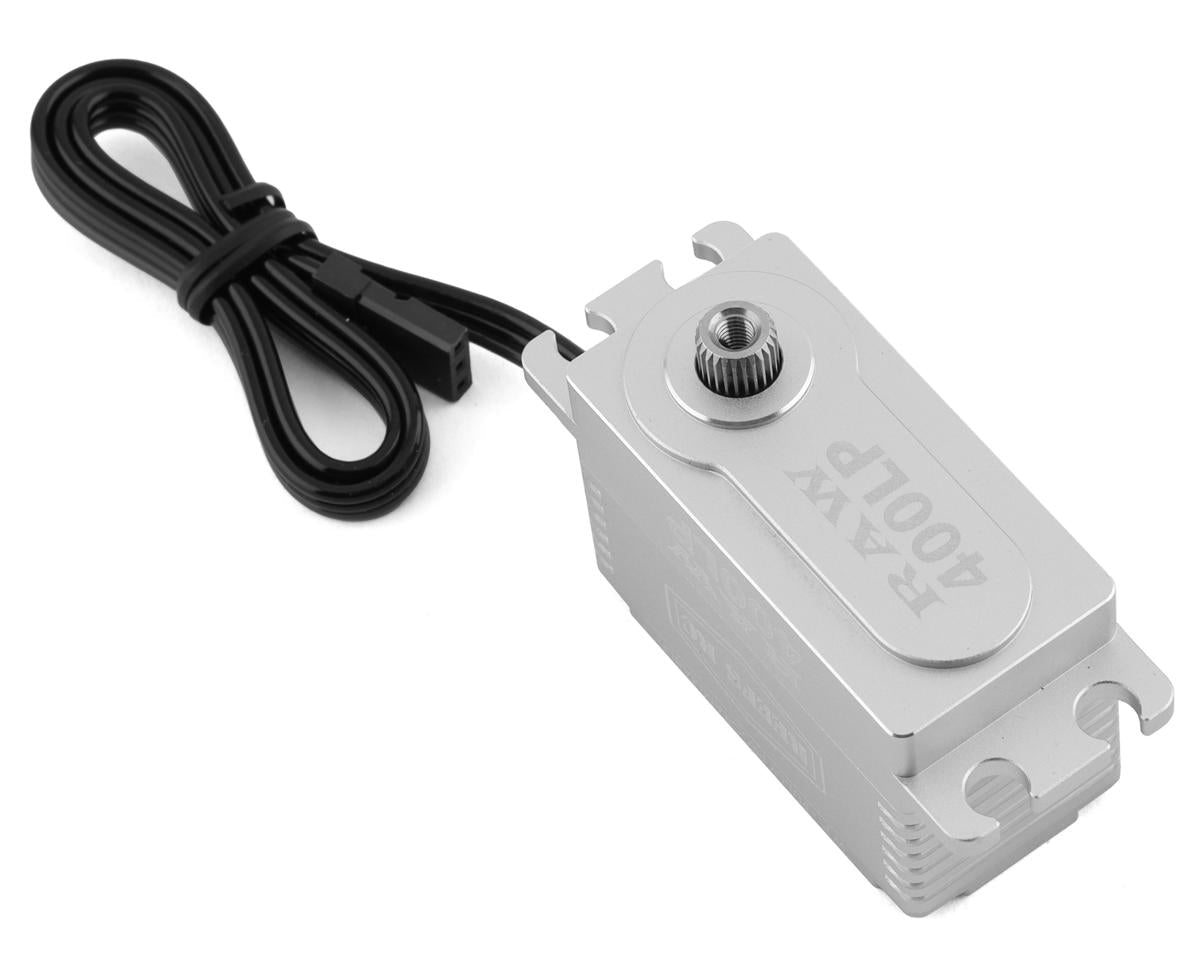

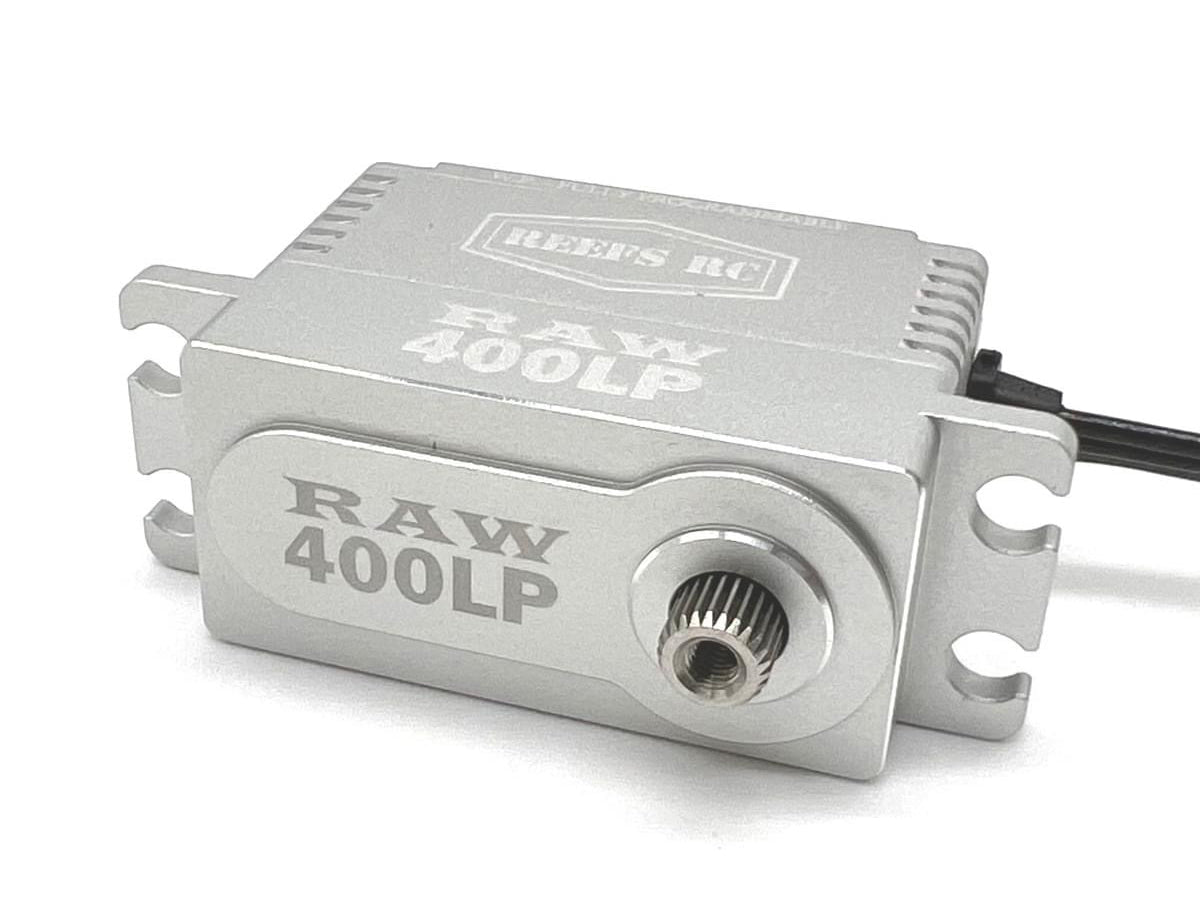

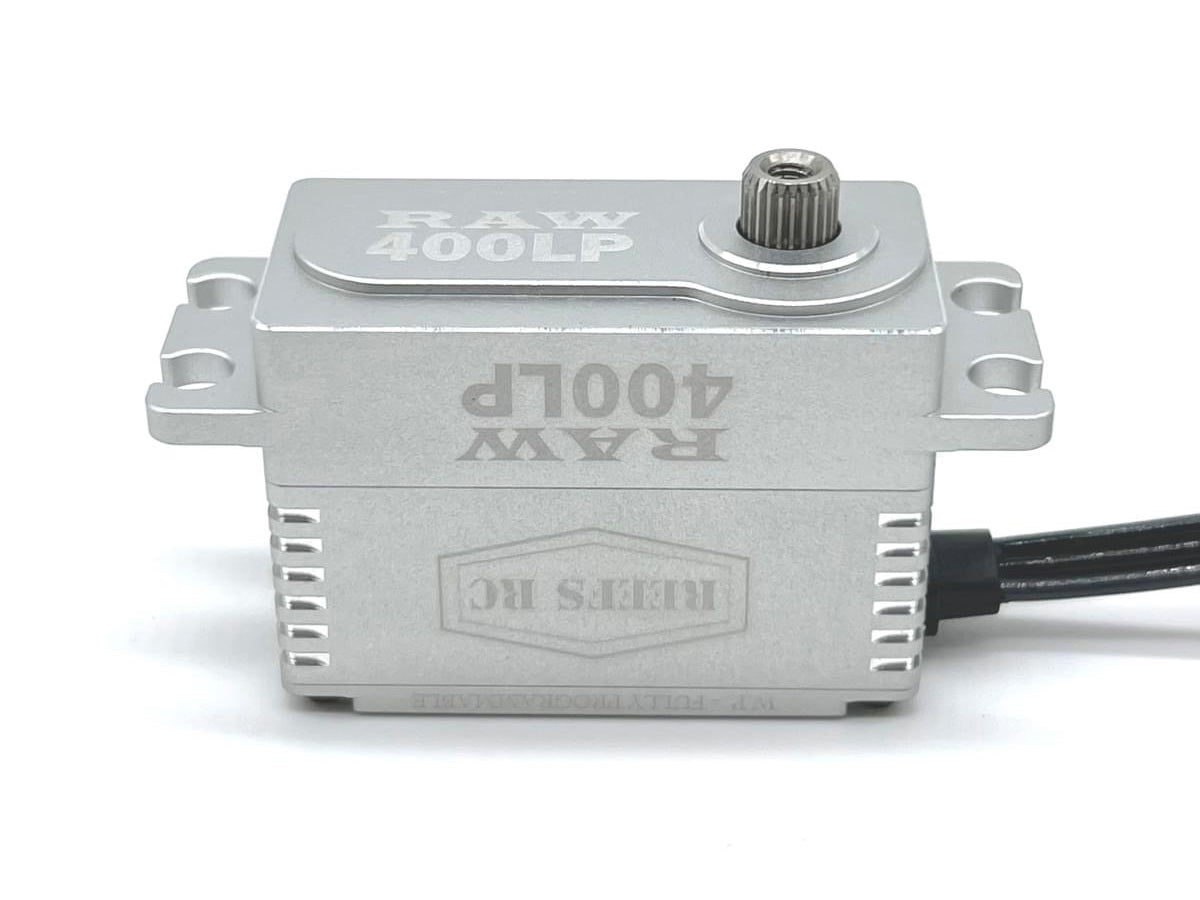

his is the Reefs RC Raw 400LP High Torque Waterproof Digital Servo. Intended for high torque applications where a reliable waterproof servo is needed the Raw 400LP excels. Using a 7-point seal system gives this servo exceptional waterproofing, while a magnetic angle sensor provides precise servo movements you can count on after countless cycles. The gearset consists of strong steel gears captured in an all-aluminum servo casing, which provides excellent heat dissipation and improves consistency. Overall the Raw 400LP delivers where other servos cannot and is an excellent option for most high torque builds.

Features:

Waterproof Design (7 Point Seals)
Magnetic Angle Sensor
CNC Raw Aluminum
Programmable with the Reefs Link (SEHREEFS64 - Sold Separately)
Steel internal gears

Specifications:

Internal: Steel Gears /CNC Aluminum Casing
Anodized Color: Raw
Bearing Type: 2BB
Weight: 2.30oz

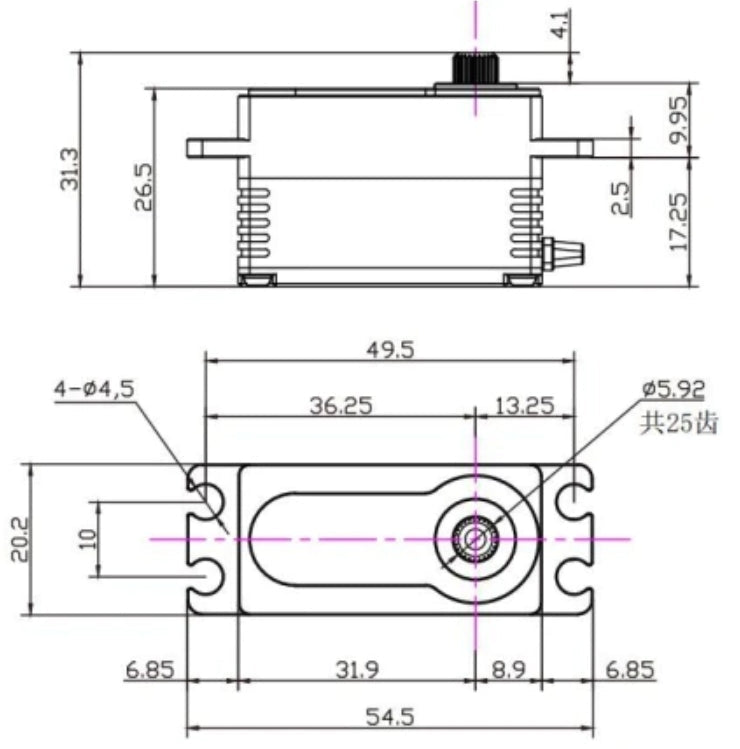

Dimension: 1.6 x .79 x 1.16 (LWH)
Torque:

6.0V: 350oz
7.4V: 420oz
8.4V: 460oz

Speed:

6.0V: .09sec
7.4V: .08sec
8.4V: .065sec

Spline: 25T
Dead Band Width: 2¦Ìs
BEC: Not Required, Recommended
